Will this disc lock fit my storage unit's hasp?

It suits the external hasps used on drive-up units, containers, sheds, and outdoor doors. Send a photo of your hasp and door and we confirm fit before any order.

Do I need an app to unlock it?

You use the KENRONE app to hold your credential, then the phone's NFC field powers the lock at the tap and you turn the knob to open. Any NFC-enabled iPhone or mainstream Android phone works.

Is a disc lock secure enough for outdoor storage?

The discus body shrouds a hardened alloy-steel shackle, so the common bolt-cutter attack on an exposed shackle has little to grip. The lock is also sealed to IP65 for rain, dust, and freeze.

What happens if my phone dies?

NFC draws very little from the phone, so even a nearly-dead phone can usually still authenticate the tap.

Can the operator revoke access remotely?

Yes. An operator on the KENRONE cloud platform suspends a unit's credential, so that phone can no longer open the lock.

How is this different from a DaVinci disc lock?

A DaVinci disc lock is a release-code mechanical lock that a tenant opens with a QR or text code, mainly for vacant-unit and overlock automation. The KENRONE disc lock uses electronic NFC authentication with a per-entry access log and revocable credentials. See the full KENRONE vs DaVinci Lock comparison.

Disc lock or cylinder lock — which should I choose?

Use the disc lock for external-hasp, drive-up, and outdoor doors, and the cylinder lock for indoor roll-up doors with a recessed cutout. Many facilities run both.

NFC Disc Lock for Storage Units — Battery-Free Padlock

The KENRONE NFC disc lock for storage units replaces the padlock on your external-hasp, drive-up, and container doors with a battery-free, phone-tap version

Tap an NFC phone to authenticate, then turn the knob to release the shrouded shackle — there is no battery inside the lock to drain or replace.

It brings the same keyless access and cloud management as our cylinder line to the doors a recessed cylinder cannot fit. If you have been looking for a smarter storage unit disc lock, this is the battery-free upgrade.

Zero battery in the lock — powered by the phone's NFC field, nothing to charge or swap
Shrouded hardened shackle — a discus body leaves little for bolt cutters to grip
IP65 sealed — rated for rain, dust, and freeze on outdoor and drive-up doors
Phone is the key — no tubular key to snap, no key inventory to manage

Request a Sample

View Specifications

How the Battery-Free NFC Disc Lock Works

There is no battery inside the lock. The phone's NFC field supplies the power at the moment of the tap, the same principle a contactless transit card uses. A unit can sit closed for a year and still open on the first tap.

Tap — hold your NFC phone to the lock; the field powers it and checks your credential
Turn — once authenticated, rotate the knob to draw back the hardened shackle
Done — no key, no battery, no dead-lock lockout on a dormant unit

Explore NFC Battery-Free Lock System

Unlocking NFC Disc Storage Units padlock-2.webp

Built for Outdoor and Drive-Up Storage

Drive-up and outdoor units punish a lock: rain, grit, temperature swings, and constant handling. This disc lock is sealed to IP65 and rated from −25°C to +65°C, so winter freeze and summer heat do not stop the tap.

Because the shackle is hardened alloy steel inside a discus body, the usual padlock attack — a bolt cutter on an exposed shackle — has little to grab.

Disc Lock vs Padlock vs Smart Lock

Here is how the KENRONE NFC disc lock compares with the padlocks storage units use today.

Comparison	Mechanical disc padlock	Bluetooth smart padlock	KENRONE NFC disc lock
Unlock method	Key	App + Bluetooth pairing	Phone NFC tap, then turn
Battery in the lock	None	Internal battery	None
Key-loss risk	High	None	None
Access logging	None	App	Cloud log
Weather sealing	Varies	Varies	IP65
Cut resistance	Shrouded shackle	Varies	Shrouded hardened shackle
Multi-tenant management	Manual	App	Cloud access control

Different door, same technology. If your units use recessed cylinders instead of hasps, the NFC self-storage cylinder lock delivers the same battery-free, phone-tap access.

Built for How Facilities and Tenants Actually Operate

For Facility Operators

Fit outdoor, drive-up, and hasp units with NFC disc locks and manage them alongside your cylinders. Tenants get a digital key at move-in; you get remote credential control, access logs, and no key inventory to track.

Request Facility Pricing

For Tenants (Long-Term Renters)

Bring your own smart lock instead of the facility markup. Tap to authenticate, turn to open, and see every access on your phone — with nothing to recharge and no key to lose.

Check Compatibility

Specifications

Mechanical	Smart
Model: KR-NFC-PL96	Authentication: NFC (ISO 14443-A)
Body: zinc alloy	Encryption: AES-256 dynamic credentials
Shackle: Stainless steel lock beam, Ø10 mm	Power source: passive (smartphone NFC field)
Body size: Ø70 / H=96 mm,B= 55mm	Battery: none inside the lock
Ingress protection: IP65	Compatible devices: NFC-enabled iOS & Android
Operating temp: −25°C to +65°C	Unlock response: typically 0.5–2 seconds
Humidity: 10–90% RH	Access log: cloud-retained (retention configurable)
Certifications: CE, FCC, RoHS	Also suits: drive-up, containers, outdoor cabinets

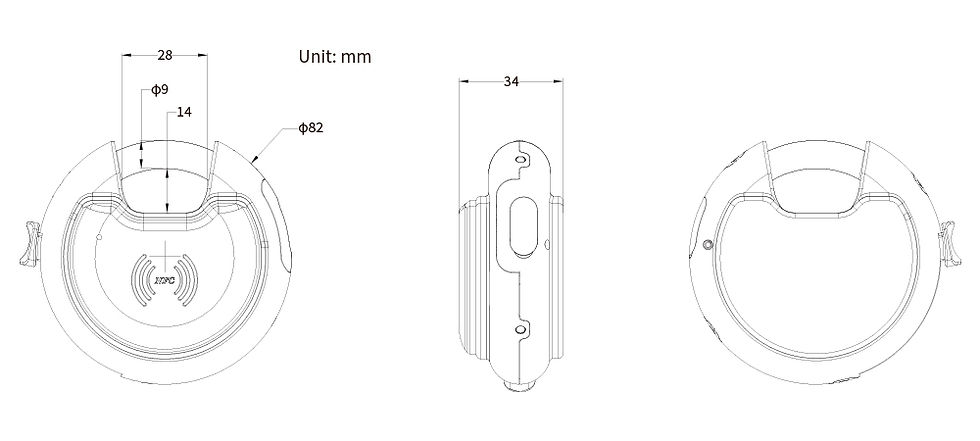

Dimension line drawing

Customization and OEM

Structure, dimensions, and appearance are all open to customization for project and OEM programs. If you need a different shackle length, body size, or finish for your facility or product line, we spec it with you.

Explore OEM/ODM & API

Where This Fits in a Full Self-Storage Access Control Solution

A real facility is rarely one door type. The disc lock covers hasp, drive-up, and outdoor units while the cylinder covers indoor roll-ups — both managed from one platform. See how a full rollout works on our self-storage access control solution page.

Self Storage Solution
