What is an NFC lock? How It Works & Why Battery-Free Wins
- Andy
- Jul 8
- 7 min read
Updated: Jul 10
An NFC lock is an electronic lock that authenticates users through near-field communication (NFC) — a short-range wireless standard operating at 13.56 MHz over a range of roughly 4 cm (ISO/IEC 18092 and NFC Forum standards). Tap an NFC-enabled phone or card against the lock, the credential is verified, and the mechanism opens. Some designs go further: they carry no battery at all, drawing their operating power from the phone's NFC field itself.
A lock with no battery, no wiring, and no physical key — opened in under two seconds. That's not a concept product. It's how NFC battery-free locks work today, and it's changing how manufacturers and facility operators approach access control at scale. But "NFC lock" is a category, not a single product — the market uses the term for three architectures that work very differently.
• How NFC technology works — and the active vs. passive distinction that determines everything downstream
• The 3 lock architectures on the market, compared side by side
• Real deployment specs and a decision framework for choosing the right type — whether you're integrating into a product line, specifying for a client, or evaluating suppliers
How NFC Technology Works
NFC stands for Near Field Communication. It operates at 13.56 MHz and enables two-way data exchange between devices within approximately 4 centimeters. That short range isn't a design limitation — it's a security feature. An attacker cannot intercept a signal that requires physical proximity to generate.
The Signal Chain
Every NFC transaction follows the same four steps:
1. An NFC-enabled device emits a low-power radio frequency field.
2. A second device enters that field within close range.
3. The field transfers both data and, in passive systems, operating power.
4. Authentication completes and access is granted or denied.
The process takes milliseconds. Most users experience it as an instantaneous tap.
Active vs. Passive NFC: The Core Difference
The critical variable in NFC lock design is whether the lock body itself requires its own power source.
• Active NFC devices carry an internal power source. They can initiate communication and broadcast continuously.
• Passive NFC devices carry no battery. They draw all operating power from the electromagnetic field of the device held against them.
This single distinction determines battery replacement schedules, installation complexity, and total cost of ownership over a five- or ten-year deployment.
The 3 Types of NFC Locks
The market uses "NFC lock" to describe three different architectures. Here is how they compare.
Type 1 — NFC Card Locks (RFID-Style)
The lock body has its own power source — either wired to mains power or running on an internal battery. The credential (an NFC card or key fob) is passive and battery-free. When the card is tapped, the reader inside the lock powers the card through induction, reads its encrypted ID, and triggers the mechanism.
• Common in: Hotel room doors, office building entry points, gym turnstiles
• The limitation: The lock itself still requires power infrastructure — battery versions need regular replacement, wired versions need electrical installation.
Type 2 — Battery-Powered NFC Smart Locks
The lock body contains a rechargeable or replaceable internal battery. A smartphone app communicates with the lock, typically via NFC or Bluetooth. The lock stores permissions locally and logs access events.
• Common in: Residential front doors, premium locker systems
• The limitation: The internal battery requires replacement or recharging. Yale's official support documentation, for example, quotes 6–9 months of battery life under normal usage (Yale Home, 2026). Across hundreds of deployed units, that cycle becomes a sustained operational burden.
Type 3 — Battery-Free NFC Smart Locks (Passive NFC)
The lock body contains no battery. When a user taps an NFC-enabled smartphone against the lock, the phone's NFC signal generates enough electromagnetic energy to power the lock's authentication chip and mechanical actuator. The same tap that delivers the credential also provides the energy to execute the unlock.
• Common in: Industrial cabinets, outdoor utility enclosures, self-storage units, office and gym lockers at scale
• The advantage: Zero battery maintenance. No wiring. No replacement cycles. The lock operates as long as the hardware is mechanically sound.
Side-by-Side Comparison
Type 1: NFC Card Lock | Type 2: Battery Smart Lock | Type 3: Battery-Free NFC Lock | |
Lock power source | Wired or internal battery | Internal battery | None — powered by phone NFC |
User credential | NFC card/fob | Smartphone | Smartphone |
Battery maintenance | Lock needs power source | 6–9 months typical (per Yale's own spec) | Never |
Installation | Wiring often required | Moderate | Wireless, no infrastructure |
Scale economics | Degrades with volume | High maintenance cost at scale | Improves with volume |
Best fit | Building entry doors | Residential/premium single-site | Industrial, distributed, high-volume |

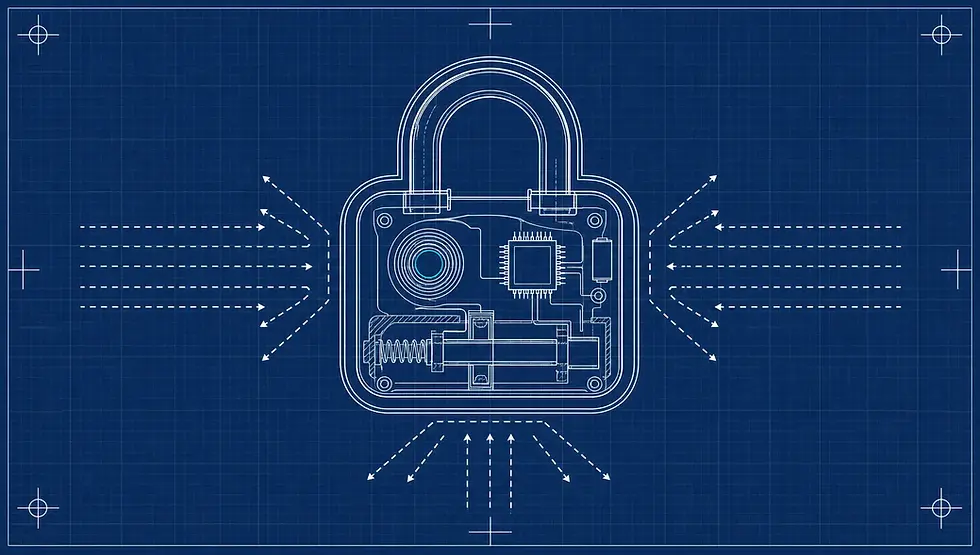

How a Battery-Free NFC Lock Opens — Step by Step
The sequence below takes 0.5 to 2 seconds from phone tap to open mechanism. Understanding each step answers the most common question from first-time evaluators: how does a lock open with no power source inside it?
1. User opens the app and approaches the lock powering the lock requires near contact, about 1 cm or less; tighter than NFC's 4 cm data-exchange limit, because harvesting energy takes a stronger field than exchanging data.
2. Phone emits a 13.56 MHz electromagnetic field — standard NFC operating frequency.
3. The lock's internal coil harvests that energy — electromagnetic induction converts the field into the small amount of DC power required to run the authentication circuit
4. AES-256 encrypted credential is verified — the lock checks the phone's credential against stored permissions
5. Actuator releases — the mechanism unlocks
As Andy, Head of R&D at KENRONE, explains: "Conventional smart security has always been held back by cables and battery cycles. NFC passive technology isn't a workaround — it's a fundamental redefinition of how locks operate."
Following an engineering breakthrough in March 2026, KENRONE's NFC reverse-power mechanism completes this full sequence in 0.5 to 2 seconds under standard conditions — approximately twice the speed of previous generations.
Real-World Specs: What Industrial Deployment Actually Requires
For manufacturers integrating NFC locks into equipment, or solution providers specifying systems for demanding environments, these parameters determine whether a product is viable:
Parameter | KENRONE NFC Battery-Free Lock Series |
Operating temperature | -25°C to +65°C |
Humidity range | 10% to 90% RH |
Weatherproofing (padlock series) | IP65 |
Encryption standard | AES-256 |
iPhone compatibility | iPhone 7 and above, including all iPhone series |
Android compatibility | Samsung, Huawei, Xiaomi, OPPO, vivo, OnePlus, Google Pixel, Sony, and most NFC-enabled Android devices |
Unlock speed | 0.5–2 seconds (March 2026 update) |
Patents | 20+ NFC-specific patents |
Certifications | CE, FCC, RoHS, ISO 9001, ISO 14001 |
The -25°C lower operating limit is specifically relevant for outdoor deployments — telecom cabinets in cold-climate regions, utility enclosures exposed to winter conditions, or logistics equipment in refrigerated environments where indoor-rated consumer hardware was never designed to operate.
Senior R&D Engineer Qiu at KENRONE describes the structural approach: "We've fused the electronic and mechanical architecture into a single structure — delivering anti-tamper integrity while keeping NFC energy harvesting compatible with the vast majority of smartphones on the market."
Evaluating NFC locks for a manufacturing or integration project? Speak with KENRONE's technical team about specifications, form factors, and OEM customization options. Request product specifications →
Where Battery-Free NFC Locks Are Deployed
Battery-free NFC locks address one specific operational problem: how to secure a distributed or high-volume asset base without building a battery replacement and key management program around it.
That problem appears across more industries than most procurement teams initially identify:
Application | Recommended Form Factor | Why Battery-Free Fits |
Office and gym lockers | Eliminates battery service calls across large locker banks | |
Self-storage facilities | Hundreds of units; zero battery logistics | |
Outdoor telecom / utility cabinets | Weather exposure rules out battery-powered alternatives | |
Centralized mailbox systems | Retrofit installation with no electrical work | |
Industrial control panels | Wide temperature range required | |
Euro-standard door cylinders | Direct replacement; no modification to door hardware | |
Self-storage unit doors | Fits existing door hardware; no retrofit complexity |
How to Choose the Right NFC Lock for Your Application
Three questions narrow the decision for most applications:
Q1: How many people need access, and do permissions change over time?
• Single user, fixed access → offline app management, no infrastructure required
• Multiple users, shared or time-limited credentials → cloud-connected management platform
Q2: What is the operating environment?
• Indoor, climate-controlled → standard cam lock or locker lock.
• Outdoor or weather-exposed → IP65-rated padlock with -25°C to +65°C operating range
• Door installation → euro cylinder or self-storage cylinder, direct replacement with no modification to existing hardware
Q3: Are you integrating into your own product, or deploying as a standalone system?
• Integrating into manufactured equipment → OEM cam lock with customizable structure, dimensions, and surface finish
• Deploying as a complete system → select by form factor and connect to the management platform
For OEM applications, KENRONE supports full structural and dimensional customization. Minimum order quantities and lead times are confirmed based on project specifications — the team evaluates each project individually before providing details.
Frequently Asked Questions
Do NFC battery-free locks work without Wi-Fi or mobile data?
Yes. The lock requires no network connection to open. With the offline app, credentials are stored locally on the phone, and the unlock completes via NFC tap regardless of signal conditions. The cloud-connected app uses the network for permission management, but the physical unlock still happens via NFC — not over the internet.
Which phones are compatible with NFC battery-free locks?
Any NFC-enabled smartphone. iPhone 7 and above on iOS. On Android, standard support across Samsung, Huawei, Xiaomi, OPPO, vivo, OnePlus, Google Pixel, Sony, and most major brands. KENRONE's March 2026 engineering update further extended compatibility.
What is the difference between NFC and RFID locks?
Both technologies use electromagnetic induction, but NFC operates at 13.56 MHz with bidirectional communication and supports encrypted credential exchange. Legacy 125 kHz proximity systems broadcast a static, unencrypted ID that inexpensive off-the-shelf tools can clone in seconds — an HID Global director has publicly described such credentials as "actually dangerous". Modern encrypted access cards operate at 13.56 MHz — the same frequency NFC uses.
Can NFC locks be cloned or intercepted?
NFC battery-free locks using AES-256 encryption and challenge-response authentication are resistant to credential cloning. NFC's short communication range (4 cm at most — and battery-free unlocking requires near contact at about 1 cm) also limits relay attack vectors that affect longer-range wireless systems. Bluetooth-based locks, which operate at up to 10 meters, present a larger interception surface by comparison.
Source Battery-Free NFC Locks for Your Project
Keyless, battery-free NFC locks eliminate two persistent operational problems:
• Battery replacement cycles — for facility operators managing distributed assets, this removes an entire recurring service program.
• Wiring infrastructure — for manufacturers embedding locking into equipment, the product ships maintenance-free.
KENRONE holds 20+ NFC-specific patents. Products are certified CE, FCC, and RoHS, deployed across 100+ countries, and available in cam lock, padlock, euro cylinder, storage cylinder, and integrated product configurations — all supporting OEM customization.
If you're evaluating battery-free NFC locks for a product integration or facility deployment, contact KENRONE to discuss your specifications.
